SLA Transparent Resin

SLA Transparent Resin

Waterproof material, transparent, smooth surface, high level of detail

Estimated delivery time:
7 - 10 working days
The delivery time extends from the time the order is placed until the models are received.
Maximum print size:
600 x 600 x 450 mm
Larger models can be printed by dividing them into several parts and then joining them together.
Standard layer height:
0.1 mm
Tolerance:
±0.3% (max. ±0.3% mm)
Heat resistance:
49°C
The model can be used up to this temperature without being damaged.

Available colors

White

Available post-processing

Acrylic lacquer

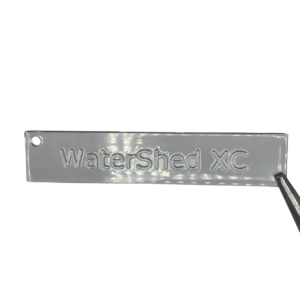

Gallery

Suitable for

  • Transparent components
  • Prototypes with water or liquid contact
  • Art & Jewelry

Unsuitable for

  • Complex models with fine details
  • Applications with high heat or UV exposure
  • Applications with chemical exposure:
  • Components with high mechanical loads

Additional information

All models are polished as standard, creating a surface that looks like glass.

Minimum wall thickness with supported wall

A supported wall is one that is connected to other walls on two or more sides.

1mm

Minimum wall thickness for unsupported wall

An unsupported wall is one that is connected to other walls on less than two sides.

1.5mm

Minimum supported wire thickness with support structure

A wire is a feature whose length is more than five times its width. A supported wire is connected to walls on both sides.

1.2mm

Minimum supported wire thickness without support structure

A wire is a feature whose length is more than five times its width. An unsupported wire is connected to walls on less than two sides.

1.2mm

Minimum hole diameter

The precision of a hole depends not only on its diameter, but also on the thickness of the wall in which it is printed. The thicker the wall, the less accurate the hole can be. For holes that go all the way through, it must also be ensured that there is a clear line of sight so that all excess material can be removed during post-processing.

0.6mm

Minimal raised detail

A detail is a feature whose length is less than twice its width. The minimum size of details is determined by the printer resolution. If the detail dimensions are below this minimum, the printer may not be able to reproduce them accurately. Details that are too small can also be smoothed out during polishing and thus disappear.

To ensure that details are clearly displayed, they should be larger than the specified minimum. We may not be able to print products with details below the minimum size as the end result will not match your design. If your product contains smaller details, try to enlarge them, remove them or choose a material with finer detail reproduction.

0.6mm

Minimal engraved detail

A detail is a feature whose length is less than twice its width. Engraved or recessed details are those that go into a surface.

1mm

Minimum distance between components

The distance is the space between two parts, walls or wires. To achieve a successful print result, the gap between parts, walls and wires should be greater than the specified minimum. If the distance is too small, it may help to increase the gap or connect the parts or features if their independence is not necessary. Alternatively, a material with a smaller minimum gap can be selected.

mm

Included parts possible?

Sometimes interlocking or moving parts cannot be printed because the supports inside the cross-section cannot be removed.

No

Support structures needed?

As each layer must build on the previous one, some materials at angles greater than 45 degrees usually require supports to be printed along with the design. Supports are not inherently detrimental to your design, but they increase the complexity of the printing process and result in a less smooth surface on overhanging parts.

Yes

Properties

Weather resistant

Heat resistant

Elastic

High strength

Chemically resistant

Biodegradable

Technical data sheet

Technical data sheet
Safety sheet

SLA (stereolithography)

How it works:
In the SLA process, liquid resin is cured by UV light. A laser or UV light hardens the desired areas layer by layer by moving in the resin bath in the desired shape until the model is completed.

Advantages of SLA:
  • High level of detail: SLA offers a particularly smooth surface and is ideal for models with high precision and fine details.
  • Smooth surfaces: The fine layers create high-quality, smooth surfaces that often require no finishing.
Areas of application: SLA is often used for jewelry design, dental models, medical prototypes and other applications where high precision and fine details are required.
